Apraksts

• Manufacturer: Texas Instruments
• Product Category: Monostable Multi-vibrator
• RoHS: Details
• Elements per Chip: 1
• Logic Family: LS
• Logic Type: Monostable Multivibrator

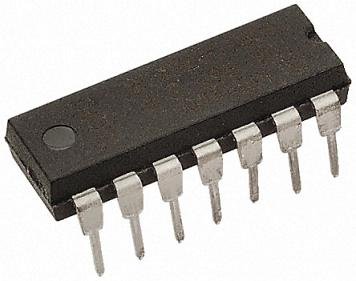

• Package/Case: PDIP-14
• Supply Current - Max: 6 mA
• Propagation Delay Time: 56 ns
• High Level Output Current: - 0.4 mA
• Low Level Output Current: 8 mA
• Supply Voltage - Max: 5.25 V
• Supply Voltage - Min: 4.75 V
• Minimum Operating Temperature: 0 C
• Maximum Operating Temperature: + 70 C
• Packaging: Tube
• Brand: Texas Instruments
• Height: 4.57 mm
• Length: 19.3 mm
• Mounting Style: Through Hole
• Operating Supply Voltage: 5 V
• Product Type: Monostable Multivibrator
