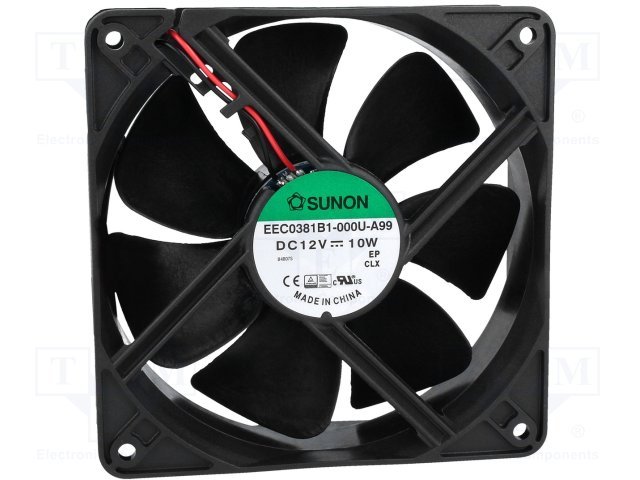

120x120x38mm, DC12V, ritgultnis, 234.4m3/h, 48db, 3100RPM, 10W, Ventilators
120x120x38mm, DC12V, ritgultnis, 234.4m3/h, 48db, 3100RPM, 10W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

120x120x38mm, DC12V, ritgultnis, 234.4m3/h, 48db, 3100RPM, 10W, Ventilators

Cena: 14.50 €
00025875
EEC0381B1-000U-A99
9
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 12V DC
    • Operating voltage 6...13.8V
    • Fan dimensions 120x120x38mm
    • Power consumption 9.6W
    • Rated current 0.8A
    • Fans efficiency 234.4m3/h
    • Noise level 48dBA
    • Kind of Bearing ball bearing
    • Rotational rate/speed 3100 (±10%)rpm
    • Weight 214g
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Static pressure 9.14mm H2O
    • Cable length 310mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Wire size 24AWG
    • Additional functions Autorestart

    Parametri

    120x120x38mm
    12VDC
    uz ass
    ritgultnis
    234.4m3/st
    48dBA
    3100apgr.
    10W
