Apraksts

• Specification
• Fan type DC

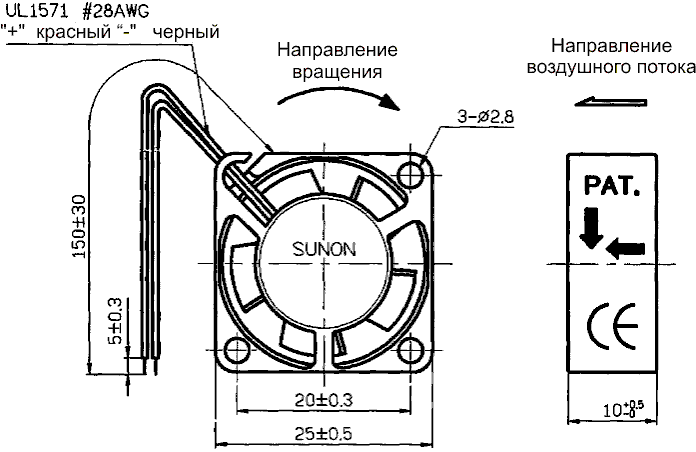

• Fan dimensions 25x25x10mm
• Bearing type Vapo
• Supply voltage 12V DC
• Fans maximum flow rate 5.1m3/h
• Noise level 16dBA
• Rotational rate/speed 10000 (±30%)rpm
• Power consumption 500mW
• Static pressure 4.57mm H2O
• Operating voltage range 4.5 ÷; 13.8V
• Weight 7.5g
• Rated current 38mA
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic PBT
• Housing material thermoplastic PBT
• Insulation class E
• Leads 150mm leads, AWG28 x2
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Fan motor brushless DC motor

Parametri

25x25x10mm
12VDC
uz ass
MagLev
5.07m3/st
16dBA
9600apgr.
0.76W
