Apraksts

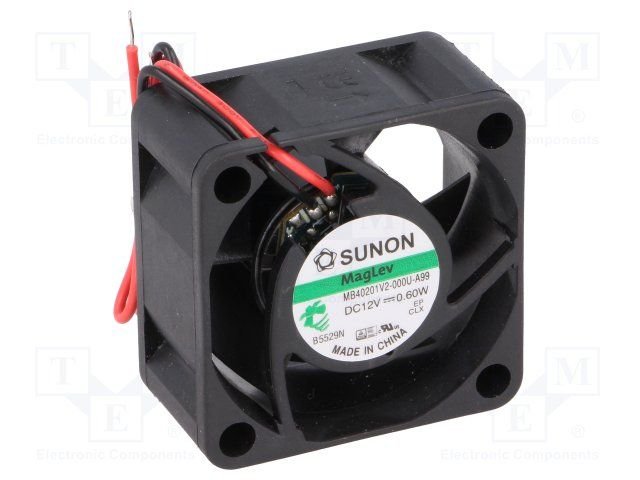

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Operating voltage 4.5...13.8V
• Fan dimensions 40x40x20mm
• Power consumption 0.64W
• Current rating 0.05A
• Fans efficiency 13.1m3/h
• Noise level 21dBA
• Kind of Bearing Vapo
• Rotational rate/speed 6200 (±15%)rpm
• Weight 31g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class E
• Leads 2 leads
• Operating temperature -10...70°C
• Static pressure 4.06mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 26AWG
• Additional functions Autorestart

Parametri

40x40x20mm
12VDC
uz ass
MagLev
13.01m3/st
21dBA
6200apgr.
0.64W

Papildu dokumentācija
