Apraksts

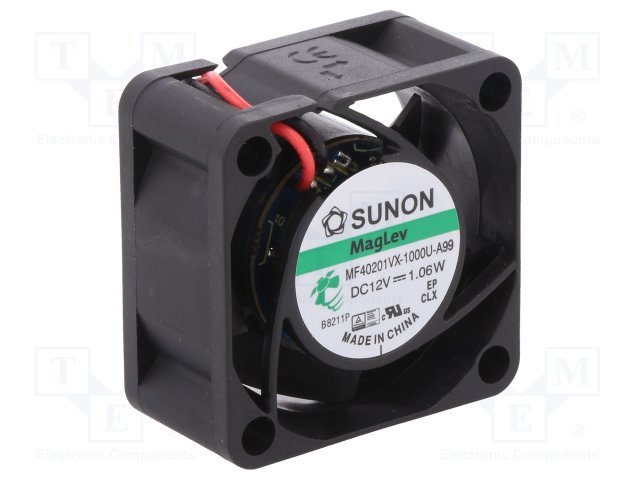

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 12V DC
• Operating voltage 4.5...13.8V
• Fan dimensions 40x40x20mm
• Power consumption 1.38W
• Rated current 0.115A
• Fans efficiency 18.3m3/h
• Noise level 27.5dBA
• Bearing type Vapo
• Rotational rate/speed 8200 (±15%)rpm
• Weight 31g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class E
• Operating temperature -10...70°C
• Leads 2 leads
• Static pressure 6.85mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 26AWG
• Additional functions Autorestart

Parametri

40x40x20mm
12VDC
uz ass
MagLev
18.25m3/st
27.5dBA
8000apgr.
0.96W

Papildu dokumentācija
