Apraksts

• Specification
• Fan type DC

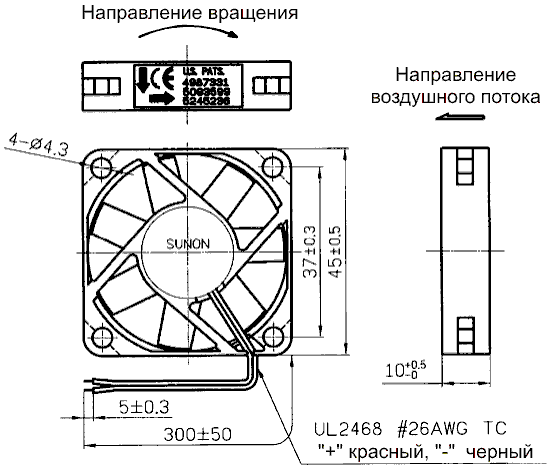

• Fan dimensions 45x45x10mm
• Bearing type slide bearing
• Supply voltage 12V DC
• Fans maximum flow rate 15.6m3/h
• Noise level 27dBA
• Rotational rate/speed 5000 (±15%)rpm
• Power consumption 1.44W
• Static pressure 3.04mm H2O
• Operating voltage range 4.5 ÷; 13.8V
• Weight 18.5g
• Rated current 120mA
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic PBT
• Housing material thermoplastic PBT
• Insulation class E
• Leads 2 300mm leads, AWG26
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Fan motor brushless DC motor

Parametri

45x45x10mm
12VDC
uz ass
slīdgultnis
15.6m3/st
27dBA
5000apgr.
1.44W

Papildu dokumentācija
