Apraksts

• Specification
• Fan type DC

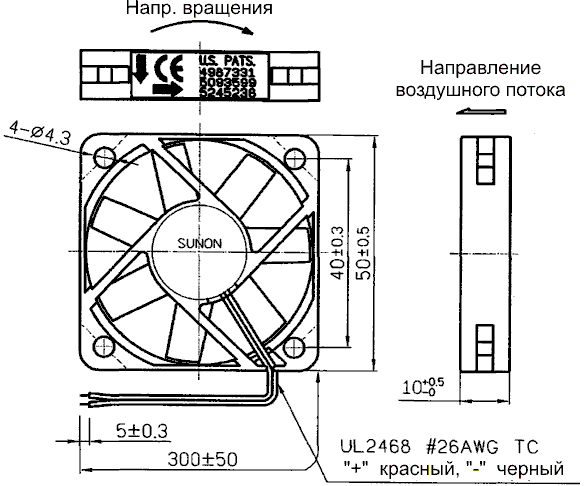

• Fan dimensions 50x50x10mm
• Bearing type slide bearing
• Supply voltage 12V DC
• Fans maximum flow rate 18.69m3/h
• Noise level 26dBA
• Rotational rate/speed 4300 (±20%)rpm
• Power consumption 1.2W
• Static pressure 2.79mm H2O
• Operating voltage range 6 ÷; 13.8V
• Weight 20g
• Rated current 104mA
• Current and power consumption tolerance ±15%
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic PBT
• Housing material thermoplastic PBT
• Insulation class E
• Leads 2 300mm leads AWG28
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Fan motor brushless DC motor

Parametri

50x50x10mm
12VDC
uz ass
slīdgultnis
18.59m3/st
25.6dBA
4700apgr.
1.11W

Papildu dokumentācija
