Apraksts

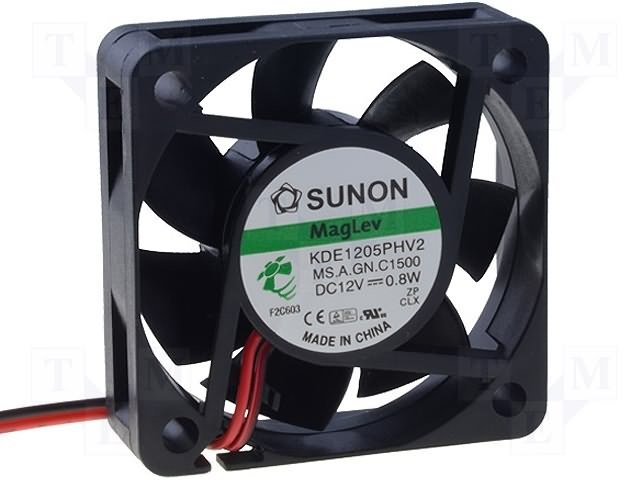

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC

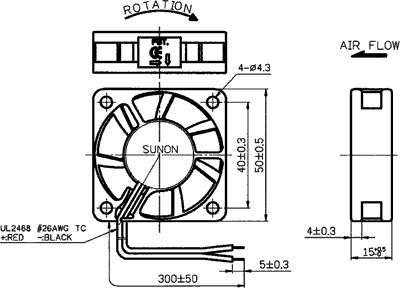

• Fan dimensions 50x50x15mm
• Power consumption 0.54W
• Current rating 0.045A
• Fan efficiency 21.97m3/h
• Noise level 29dBA
• Kind of Bearing Vapo
• Rotational rate/speed 5000 (±15%)rpm
• Weight 33g
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 300mm
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Static pressure 4.32mm H2O
• Operating voltage 4.5...13.8V
• Wire size 26AWG
• Additional information
• Gross weight: 31.7 g
• Manufacturer part number: MF50151V2-1000U-A99

Parametri

50x50x15mm
12VDC
uz ass
MagLev
21.97m3/st
29dBA
5000apgr.
0.54W

Papildu dokumentācija
