Apraksts

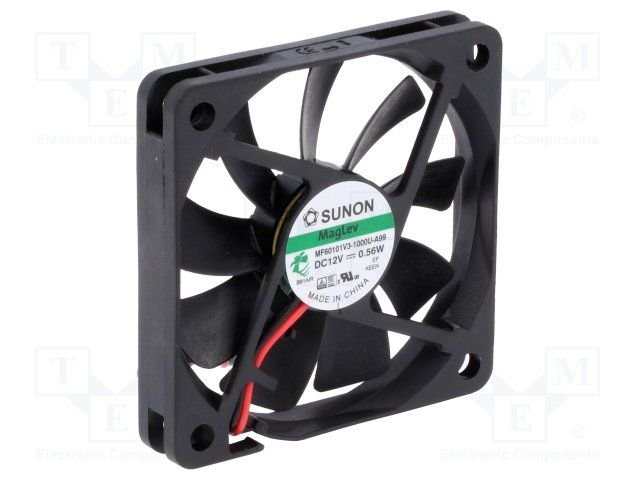

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 12V DC
• Fan dimensions 60x60x10mm
• Power consumption 0.76W
• Current rating 0.054A
• Fan efficiency 20.62m3/h
• Noise level 21.5dBA
• Kind of Bearing Vapo
• Rotational rate/speed 3000rpm
• Weight 29g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Static pressure 2.03mm H2O
• Cable length 290mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Additional functions Autorestart
• Operating voltage 8...13.8V
• Wire size 26AWG Additional information
• Gross weight: 23.5 g

Parametri

60x60x10mm
12VDC
uz ass
MagLev
20.62m3/st
21.5dBA
3000apgr.
0.56W

Papildu dokumentācija
