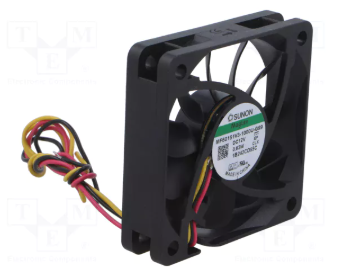

Apraksts

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 4,5...13,8V DC
• Fan dimensions 60x60x15mm
• Power consumption 0,58W
• Current rating 48mA
• Fan efficiency 29,88m3/h
• Noise level 21,3dBA
• Kind of Bearing Vapo
• Signal output F type
• Rotational rate/speed 3000obr./min
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads leads x3
• Lead length 0,29m
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Additional functions autorestart
• Fan motor brushless DC
• Supply voltage
• 12V DC
• Masa bruto34.94 g

Parametri

60x60x15mm
12VDC
uz ass
MagLev
29.88m3/st
21.3dBA
3000apgr.
0.58W

Papildu dokumentācija
