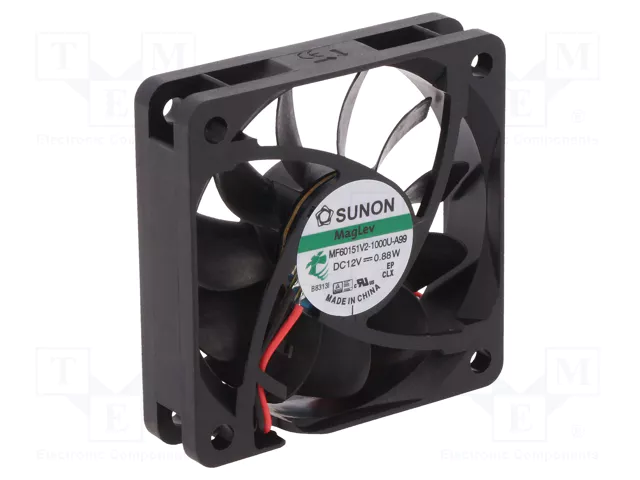

60x60x15mm, DC12V, MagLev, 38.53m3/h, 29.2dBA, 3900rpm, 0.82W, Ventilators
60x60x15mm, DC12V, MagLev, 38.53m3/h, 29.2dBA, 3900rpm, 0.82W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x15mm, DC12V, MagLev, 38.53m3/h, 29.2dBA, 3900rpm, 0.82W, Ventilators

Cena: 6.49 €
00024529
MF60151V2-A99-A
10
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Operating voltage 4,5...13,8V DC
    • Fan dimensions 60x60x15mm
    • Power consumption 0,82W
    • Current rating 68mA
    • Fan efficiency 38,53m3/h
    • Noise level 29,2dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 3900obr./min
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads lead x2
    • Operating temperature -10...70°C
    • Cable length 0,29m
    • Flammability rating UL94V-0
    • Additional functions autorestart
    • Fan motor brushless DC
    • Static pressure 3,56mm H2O
    • Wire size 26AWG
    • Supply voltage
    • 12V DC
    • Masa bruto35.5 g

    Parametri

    60x60x15mm
    12VDC
    uz ass
    MagLev
    38.53m3/st
    29dBA
    3900apgr.
    0.82W
