Apraksts

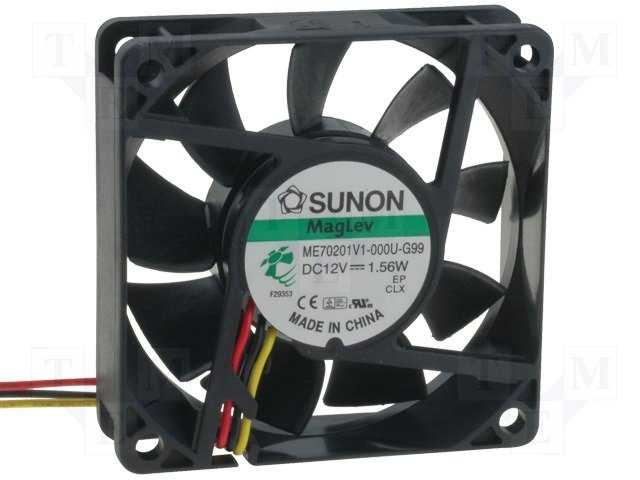

• Manufacturer SUNON
• Fan type DC
• Supply voltage 12V DC
• Fan dimensions 70x70x20mm
• Fans efficiency 49m3/h
• Noise level 33dBA
• Bearing type Vapo
• Power consumption 1.56W
• Operating voltage 4.5...13.8V
• Signal output F type
• Rotational rate/speed 3200 (±10%)rpm
• Weight 60g
• Rated current 0.13A
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ;
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Static pressure 3.55mm H2O
• Leads 3 leads
• Flammability rating UL94V-0
• Fan motor brushless DC motor
• Cable length 300mm
• Wire size 24AWG
• Additional functions Autorestart

Parametri

70x70x20mm
12VDC
uz ass
MagLev
49m3/st
33dBA
3200apgr.
1.56W

Papildu dokumentācija
