Apraksts

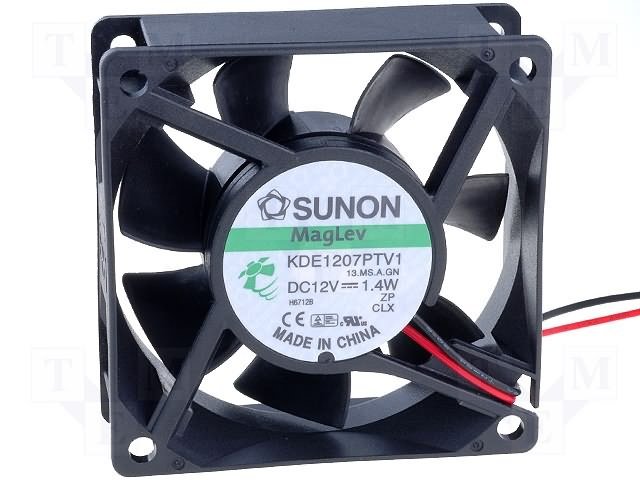

• Specification
• Fan type DC
• Fan dimensions 70x70x25mm
• Bearing type Vapo
• Supply voltage 12V DC
• Fans maximum flow rate 52.67m3/h
• Noise level 32dBA
• Rotational rate/speed 3200 (±10%)rpm
• Power consumption 1.4W
• Static pressure 3.81mm H2O
• Operating voltage range 4.5 ÷; 13.8V
• Additional functions Autorestart
• Weight 70g
• Rated current 120mA
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ;
• Fan material thermoplastic PBT
• Housing material thermoplastic PBT
• Insulation class E
• Leads 2 300mm leads AWG28
• Operating temperature -10...70°C
• Flammability rating UL94V-0
• Fan motor brushless DC motor

Parametri

70x70x25mm
12VDC
uz ass
MagLev
83.25m3/st
45dBA
5100apgr.
4.4W

Papildu dokumentācija
