Apraksts

• Specification
• Fan type AC

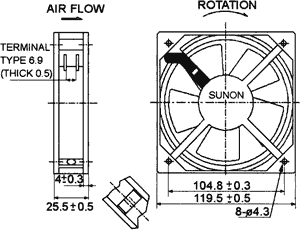

• Fan dimensions 120x120x25mm
• Bearing type slide bearing
• Fans efficiency 109 (±7%)m3/h
• Noise level 43dBA
• Supply voltage 230V AC
• Power consumption 19W
• Rotational rate/speed 2000rpm
• Weight 330g
• Rated current 90mA
• Current and power consumption tolerance ±15%
• Frequency 50Hz
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic
• Enclosure material aluminium
• Insulation class B
• Operating temperature -10...70°C
• Static pressure 3.3mm H2O
• Leads 2.8x0.3mm connectors
• Flammability rating UL94V-0

Parametri

120x120x25mm
230VAC
uz ass
slīdgultnis
109m3/st
43dBA
2050apgr.
19W

Papildu dokumentācija
