Apraksts

• Specification
• Fan type AC

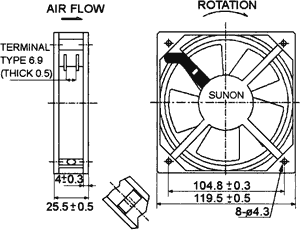

• Fan dimensions 120x120x38mm
• Bearing type ball bearing
• Fans efficiency 148 (±10%)m3/h
• Noise level 45dBA
• Supply voltage 230V AC
• Power consumption 20W
• Rotational rate/speed 2750rpm
• Weight 550g
• Rated current 130mA
• Current and power consumption tolerance ±15%
• Frequency 50Hz
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic
• Enclosure material aluminium
• Insulation class B
• Operating temperature -10...70°C
• Static pressure 6.6mm H2O
• Leads 2.8x0.3mm connectors
• Flammability rating UL94V-0

Parametri

120x120x38mm
230VAC
uz ass
ritgultnis
148m3/st
45dBA
2750apgr.
20W
