Apraksts

• Manufacturer SUNON
• Fan type AC
• Fan kind axial
• Supply voltage 230V AC

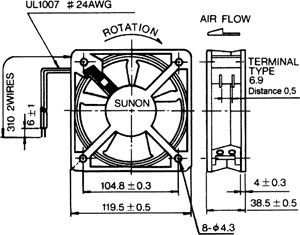

• Fan dimensions 120x120x38mm
• Power consumption 22W
• Rated current 140mA
• Fans efficiency 165 (±10%)m3/h
• Noise level 45dBA
• Bearing type ball bearing
• Rotational rate/speed 2850rpm
• Weight 550g
• Current and power consumption tolerance ±15%
• Frequency 50Hz
• Min. insulation resistance 500MΩ
• Fan material thermoplastic
• Enclosure material aluminium
• Insulation class B
• Operating temperature -10...70°C
• Leads 2.8x0.3mm connectors
• Static pressure 8.63mm H2O
• Flammability rating UL94V-0

Parametri

120x120x38mm
230VAC
uz ass
ritgultnis
165m3/st
45dBA
2850apgr.
22W

Papildu dokumentācija
