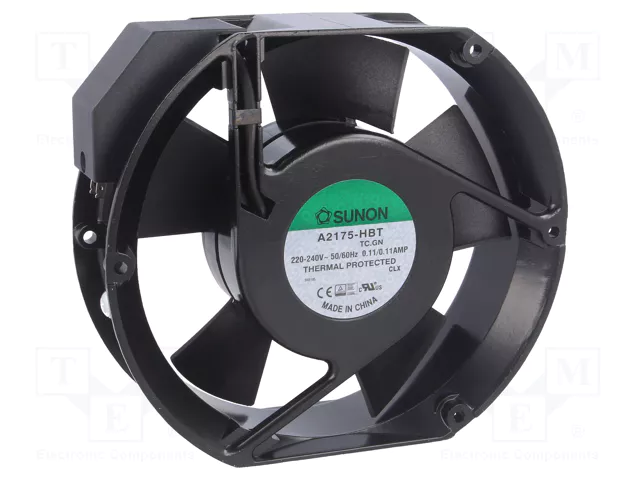

Apraksts

• Specification
• Fan type AC
• Fan dimensions 171x151x51mm
• Bearing type ball bearing
• Fans efficiency 344 (±10%)m3/h
• Noise level 51dBA
• Supply voltage 230V AC
• Power consumption 25W
• Rotational rate/speed 2800rpm
• Weight 908g
• Rated current 110mA
• Current and power consumption tolerance ±15%
• Frequency 50Hz
• Min. insulation resistance 500MΩ;
• Fan material thermoplastic
• Enclosure material aluminium
• Insulation class B
• Operating temperature -10...70°C
• Static pressure 15.74mm H2O
• Leads 2.8x0.3mm connectors
• Flammability rating UL94V-0
• Fan motor Alveolate type motor with running capacitor

Parametri

172x151x51mm
230VAC
uz ass
ritgultnis
344m3/st
51dBA
2800apgr.
25W

Papildu dokumentācija
