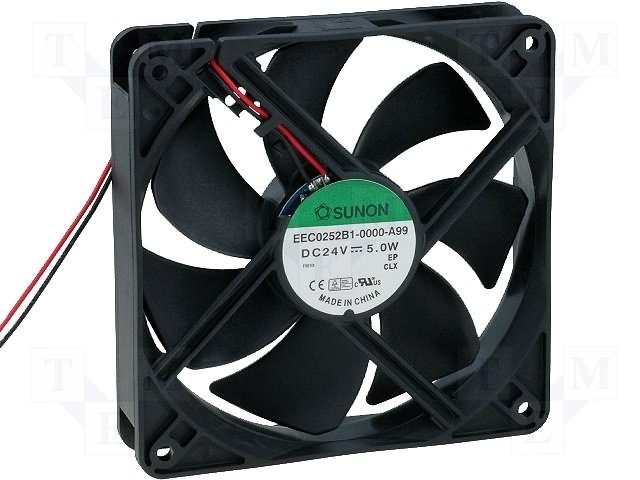

Apraksts

• Specification
• Fan type DC
• Fan dimensions 120x120x25mm
• Bearing type ball bearing
• Fans efficiency 183.8m3/h
• Noise level 44.5dBA
• Supply voltage 24V DC
• Power consumption 5.3W
• Operating voltage 10...27.6V
• Rotational rate/speed 3100 (±10%)rpm
• Weight 157g
• Rated current 0.445A
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ;
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Static pressure 7.11mm H2O
• Leads 2 leads
• Flammability rating UL94V-0
• Fan motor brushless DC motor
• Cable length 330mm
• Wire size 28AWG
• Additional functions Autorestart

Parametri

120x120x25mm
24VDC
uz ass
ritgultnis
183.8m3/st
44.5dBA
3100apgr.
5W

Papildu dokumentācija
