Apraksts

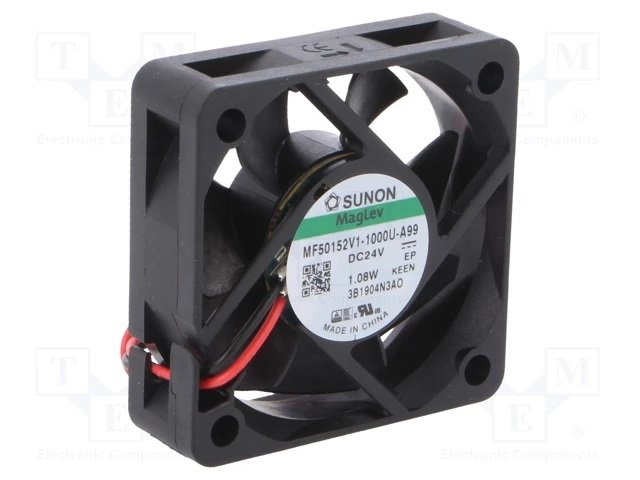

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 8...27.6V
• Fan dimensions 50x50x15mm
• Power consumption 1.01W
• Current rating 0.042A
• Fan efficiency 28.88m3/h
• Noise level 33dBA
• Kind of Bearing Vapo
• Rotational rate/speed 6100rpm
• Current and power consumption tolerance ±15%
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Cable length 300mm
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Weight 33g
• Wire size 26AWG
• Supply voltage
• 24V DC
• Gross weight30.7 g

Parametri

50x50x15mm
24VDC
uz ass
MagLev
29dBA
28.88m3/st
6100apgr.
1.08W

Papildu dokumentācija
