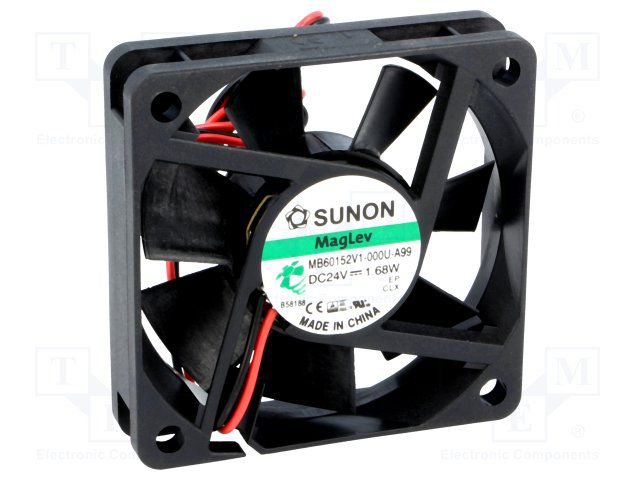

60x60x15mm, DC24V, MagLev, 35.49m3/h, 36db, 4300rpm, 1.68W, Ventilators
60x60x15mm, DC24V, MagLev, 35.49m3/h, 36db, 4300rpm, 1.68W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x15mm, DC24V, MagLev, 35.49m3/h, 36db, 4300rpm, 1.68W, Ventilators

Cena: 8.69 €
00024871
MB60152V1-A99
10
  • Apraksts

    • Manufacturer SUNON
    • Fan type DC
    • Fan kind axial
    • Supply voltage 24V DC
    • Operating voltage 13...27.6V
    • Fan dimensions 60x60x15mm
    • Power consumption 1.68W
    • Rated current 70mA
    • Fans efficiency 35.49m3/h
    • Noise level 36dBA
    • Bearing type Vapo
    • Rotational rate/speed 4300rpm
    • Weight 42.8g
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 500MΩ
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Operating temperature -10...70°C
    • Leads 2 leads
    • Static pressure 4.53mm H2O
    • Cable length 300mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Wire size 26AWG
    • Additional functions Autorestart
    • Storage temperature -40...70°C

    Parametri

    60x60x15mm
    24VDC
    uz ass
    MagLev
    35.49m3/st
    36dBA
    4300apgr.
    1.68W
