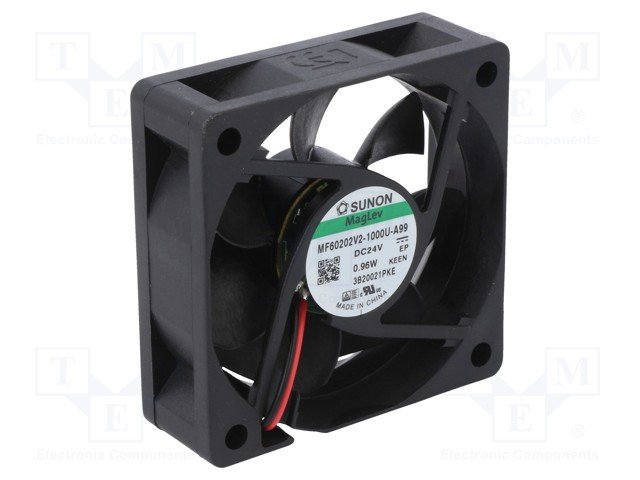

60x60x20mm, DC24V, ritgultnis, 32.26m3/h, 28dB, 4200rpm, 0.84W, Ventilators
60x60x20mm, DC24V, ritgultnis, 32.26m3/h, 28dB, 4200rpm, 0.84W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x20mm, DC24V, ritgultnis, 32.26m3/h, 28dB, 4200rpm, 0.84W, Ventilators

Cena: 10.30 €
00024870
MF60202V2-A99-A
8
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 24V DC
    • Fan dimensions 60x60x20mm
    • Power consumption 840mW
    • Current rating 35mA
    • Fan efficiency 32.26m3/h
    • Noise level 28dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 4200rpm
    • Weight 50g
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads 2 leads
    • Operating temperature -10...70°C
    • Cable length 0.29m
    • Flammability rating UL94V-0
    • Additional functions Autorestart
    • Fan motor brushless DC
    • Operating voltage 8...27.6V
    • Additional information
    • Gross weight: 100 g
    • Manufacturer part number: MF60202V2-1000U-A99

    Parametri

    60x60x20mm
    24VDC
    uz ass
    MagLev
    32.26m3/st
    28dBA
    4200apgr.
    0.84W
