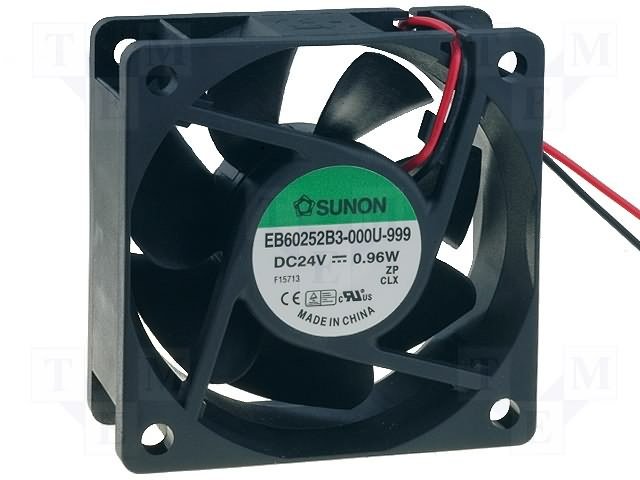

60x60x25mm, DC24V, ritgultnis, 30.58m3/h, 30db, 3800rpm, 1W, Ventilators
60x60x25mm, DC24V, ritgultnis, 30.58m3/h, 30db, 3800rpm, 1W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

60x60x25mm, DC24V, ritgultnis, 30.58m3/h, 30db, 3800rpm, 1W, Ventilators

Cena: 6.29 €
00016636
EB60252B3-999
3
  • Apraksts

    • Specification
    • Fan type DC
    • Fan dimensions 60x60x25mm
    • Bearing type ball bearing
    • Fans efficiency 23.5m3/h
    • Noise level 23.5dBA
    • Supply voltage 24V DC
    • Power consumption 0.96W
    • Operating voltage 12...27.6V
    • Rotational rate/speed 3000 (±15%)rpm
    • Weight 56g
    • Rated current 0.04A
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 500MΩ;
    • Fan material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class E
    • Operating temperature -10...70°C
    • Static pressure 2mm H2O
    • Leads 2 leads
    • Flammability rating UL94V-0
    • Fan motor brushless DC motor
    • Cable length 300mm
    • Wire size 26AWG

    Parametri

    60x60x25mm
    24VDC
    uz ass
    ritgultnis
    30.58m3/st
    30dBA
    3800apgr.
    1W
