Apraksts

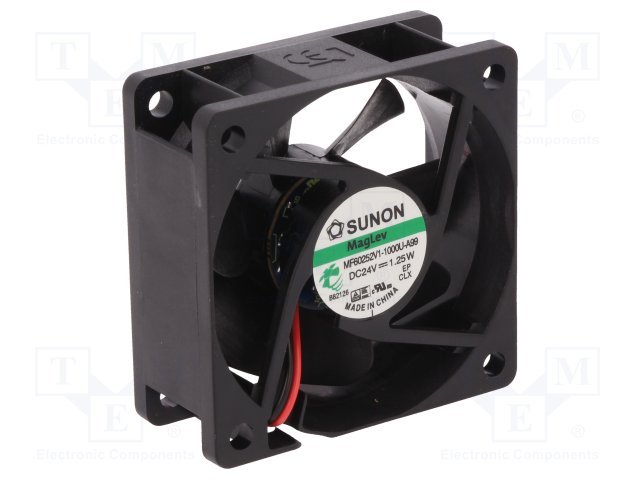

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Fan dimensions 60x60x25mm
• Power consumption 1.2W
• Current rating 0.05A
• Fan efficiency 39.72m3/h
• Noise level 27dBA
• Kind of Bearing Vapo
• Rotational rate/speed 4500rpm
• Weight 45g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 2 leads
• Operating temperature -10...70°C
• Static pressure 5.33mm H2O
• Cable length 290mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Additional functions Autorestart
• Operating voltage 8...27.6V
• Wire size 26AWG Additional information
• Gross weight: 44.7 g

Parametri

60x60x25mm
24VDC
uz ass
ritgultnis
39.72m3/st
27dBA
4500apgr.
1.25W
