Apraksts

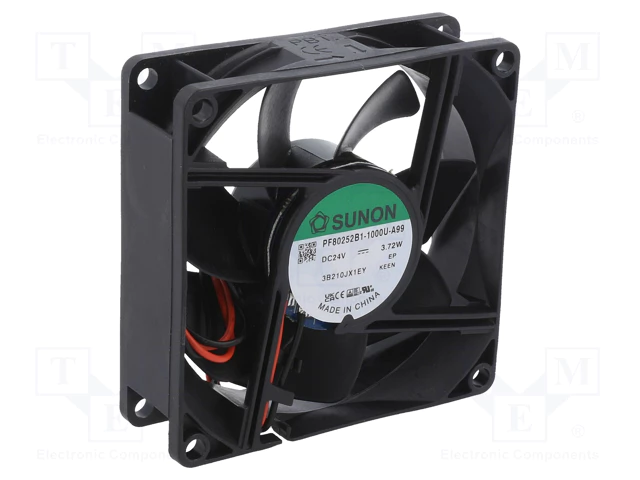

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 10...27.6V
• Fan dimensions 80x80x25mm
• Power consumption 3.72W
• Current rating 0.155A
• Fan efficiency 102m3/h
• Noise level 45.5dBA
• Kind of Bearing ball bearing
• Rotational rate/speed 4800rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0.315m
• Flammability rating UL94V-0
• Additional functions Autorestart
• Fan motor brushless DC
• Parādīt līdzīgus produktus (1841)
• Supply voltage
• 24V DC
• Masa bruto91 g

Parametri

80x80x25mm
24VDC
uz ass
ritgultnis
4800apgr.
102m3/st
45.5dBA
3.72W

Papildu dokumentācija
