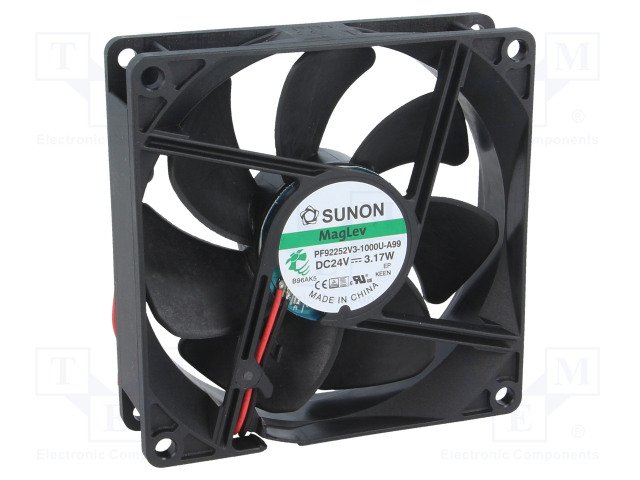

92x92x25mm, DC24V, MagLev, 109.85m3/h, 41.6dBA, 3200prm, 3.03W, Ventilators
92x92x25mm, DC24V, MagLev, 109.85m3/h, 41.6dBA, 3200prm, 3.03W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

92x92x25mm, DC24V, MagLev, 109.85m3/h, 41.6dBA, 3200prm, 3.03W, Ventilators

Cena: 12.42 €
00026148
PF92252V3-A99-A
3
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Supply voltage 24V DC
    • Fan dimensions 92x92x25mm
    • Power consumption 3.03W
    • Current rating 0.126A
    • Fan efficiency 109.85m3/h
    • Noise level 41.6dBA
    • Kind of Bearing Vapo
    • Rotational rate/speed 3200rpm
    • Weight 106g
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Leads 2 leads
    • Cable length 305mm
    • Fan motor brushless DC motor
    • Flammability rating UL94V-0
    • Static pressure 6.35mm H2O
    • Additional functions Autorestart
    • Operating voltage 10...27.6V
    • Wire size 24AWG Additional information
    • Gross weight: 107.2 g
    • Manufacturer part number: PF92252V3-1000U-A99

    Parametri

    92x92x25mm
    24VDC
    uz ass
    MagLev
    109.85m3/st
    41.6dBA
    3200apgr.
    3.03W
