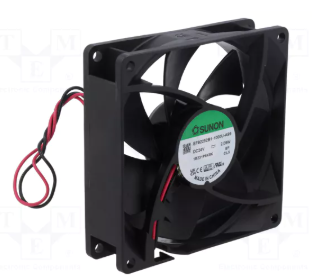

92x92x25mm, DC24V, ritgultnis, 82.0m3/h, 34dBA, 3000prm, 2.09W, Ventilators
92x92x25mm, DC24V, ritgultnis, 82.0m3/h, 34dBA, 3000prm, 2.09W, Ventilators

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

92x92x25mm, DC24V, ritgultnis, 82.0m3/h, 34dBA, 3000prm, 2.09W, Ventilators

Cena: 10.41 €
00024134
EF92252B1-A99
8
  • Apraksts

    • Manufacturer SUNON
    • Type of fan DC
    • Kind of fan axial
    • Operating voltage 8...27,6V DC
    • Fan dimensions 92x92x25mm
    • Power consumption 2,09W
    • Current rating 63mA
    • Fan efficiency 82m3/h
    • Noise level 34dBA
    • Kind of Bearing ball
    • Rotational rate/speed 3000obr./min
    • Current and power consumption tolerance ±15%
    • Min. insulation resistance 10MΩ
    • Impeller material thermoplastic
    • Enclosure material thermoplastic
    • Insulation class A
    • Leads leads x2
    • Lead length 0,3m
    • Operating temperature -10...70°C
    • Flammability rating UL94V-0
    • Additional functions autorestart
    • Fan motor brushless DC
    • Supply voltage
    • 24V DC
    • Masa bruto102.1 g

    Parametri

    92x92x25mm
    24VDC
    uz ass
    ritgultnis
    34dBA
    3000apgr.
    82.0m3/st
    2.09W

    Papildu dokumentācija

Saistītie produkti
