Apraksts

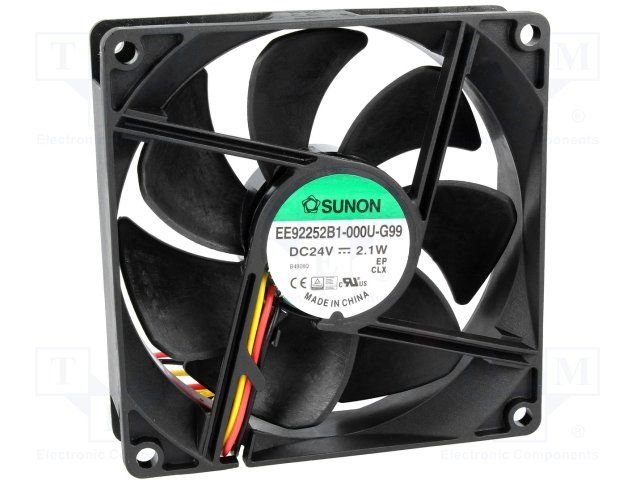

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Supply voltage 24V DC
• Operating voltage 10...27.6V
• Fan dimensions 92x92x25mm
• Power consumption 2.1W
• Rated current 0.087A
• Fans efficiency 87.55m3/h
• Noise level 34dBA
• Kind of Bearing ball bearing
• Signal output F type
• Rotational rate/speed 3000 (±10%)rpm
• Weight 94g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads 3 leads
• Operating temperature -10...70°C
• Static pressure 3.81mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 24AWG
• Additional functions Autorestart

Parametri

92x92x25mm
24VDC
uz ass
ritgultnis
87.55m3/st
34dBA
3000apgr.
2.1W
