Apraksts

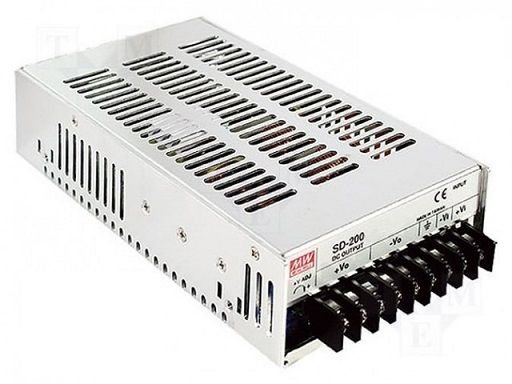

• Manufacturer MEAN WELL
• Type of converter DC/DC
• Power 201.6W
• Input voltage 19...36V
• Output current 4.2A
• Kind of case 912H

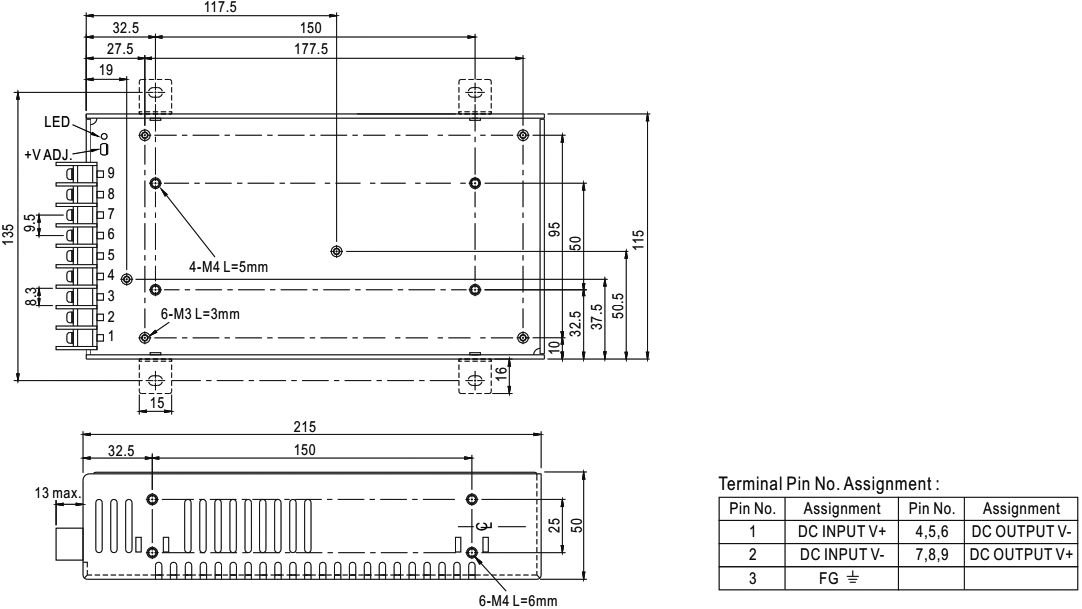

• Body dimensions 215x115x50mm
• Weight 1100g
• Efficiency 86%
• Operating temperature -20...60°C
• Protection overload, voltage growth, overheating, short-circuit
• Insulation voltage 2kV
• Power supply/converter features rated parameters obtained at full load
• Mounting for building in
• Series SD-200
• Number of outputs 1
• Related items MHS012
• Output voltage 48V DC
• Dimensions see Additional information
• Gross weight: 999.5 g
• Guarantee (months): 24
• Manufacturer part number: SD-200B-48
