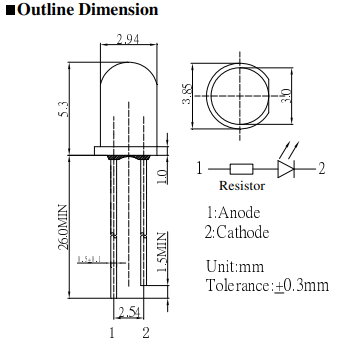

3mm, sarkana, 12V, 1120...1560mcd, 30°, 12V/10...15mA, 620...630nm, gaismas diode
3mm, sarkana, 12V, 1120...1560mcd, 30°, 12V/10...15mA, 620...630nm, gaismas diode
3mm, sarkana, 12V, 1120...1560mcd, 30°, 12V/10...15mA, 620...630nm, gaismas diode 3mm, sarkana, 12V, 1120...1560mcd, 30°, 12V/10...15mA, 620...630nm, gaismas diode

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

3mm, sarkana, 12V, 1120...1560mcd, 30°, 12V/10...15mA, 620...630nm, gaismas diode

Cena: 0.40 €
00013425
OSR5RU3131A-12V
20+
  • Apraksts

    • Manufacturer OPTOSUPPLY
    • Type of diode LED
    • LED diameter 3mm
    • LED colour red
    • Luminosity 1120...1560mcd
    • Viewing angle 30°
    • Front convex
    • Wavelength 620-630nm
    • LED lens transparent
    • LEDs' features integral current limiting resistor
    • LED current 10...15mA
    • Mounting THT
    • Terminal pitch 2.54mm
    • Operating voltage 12V
    • Additional information
    • Gross weight: 0.152 g
    • Manufacturer part number: OSR5RU3131A-12V

    Parametri

    THT
    sarkana
    1120...1560mcd
    12V
    10...15mA
