Apraksts

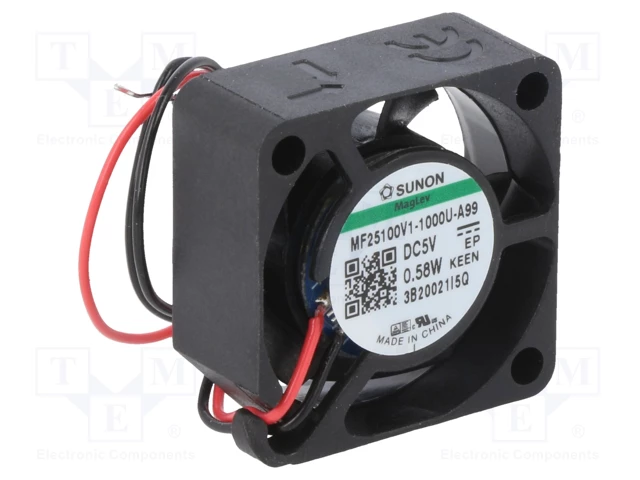

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 2.5...6V
• Fan dimensions 25x25x10mm
• Power consumption 0.53W
• Current rating 0.105A
• Fan efficiency 5.94m3/h
• Noise level 23dBA
• Kind of Bearing Vapo
• Rotational rate/speed 13000rpm
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0.15m
• Flammability rating UL94V-0
• ECE R-118:
• This regulation applies to fire testing of materials used in the interiors
• of motor vehicles, such as upholstery, floor coverings, etc.
• UL94:
• This standard is used to assess the flammability of plastic materials
• used in various industries, including the electronics, automotive
• and construction sectors.
• Additional functions Autorestart
• Fan motor brushless DC
• Supply voltage
• 5V DC
• Gross weight6.74 g

Parametri

25x25x10mm
5VDC
uz ass
MagLev
5.95m3/st
23dBA
13000apgr.
0.58W

Papildu dokumentācija
