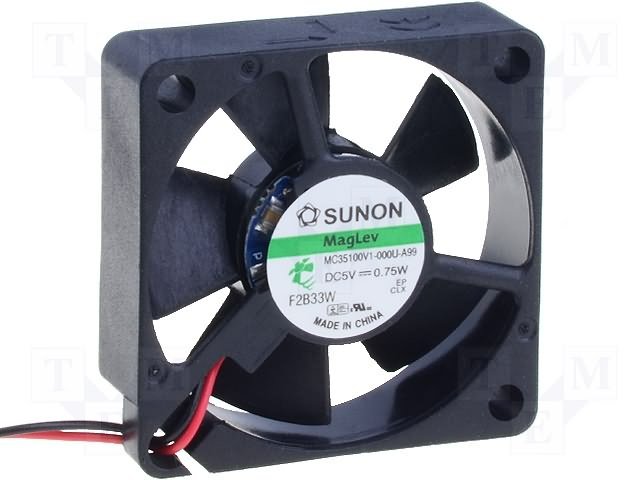

Apraksts

• Manufacturer SUNON
• Type of fan DC
• Kind of fan axial
• Operating voltage 2.5...6V
• Fan dimensions 35x35x10mm
• Power consumption 0.68W
• Current rating 0.135A
• Fan efficiency 12.17m3/h
• Noise level 28dBA
• Kind of Bearing Vapo
• Rotational rate/speed 10000rpm
• Min. insulation resistance 10MΩ
• Impeller material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Leads lead x2
• Operating temperature -10...70°C
• Cable length 0.14m
• Flammability rating UL94V-0
• ECE R-118:
• This regulation applies to fire testing of materials used in the interiors
• of motor vehicles, such as upholstery, floor coverings, etc.
• UL94:
• This standard is used to assess the flammability of plastic materials
• used in various industries, including the electronics, automotive
• and construction sectors.
• Additional functions autorestart
• Fan motor brushless DC
• Static pressure 5.59mm H2O
• Wire size 28AWG
• Supply voltage
• 5V DC
• Gross weight9.6 g

Parametri

35x35x10mm
5VDC
uz ass
ritgultnis
11.89m3/st
28dBA
0.75W
10000apgr.

Papildu dokumentācija
