Apraksts

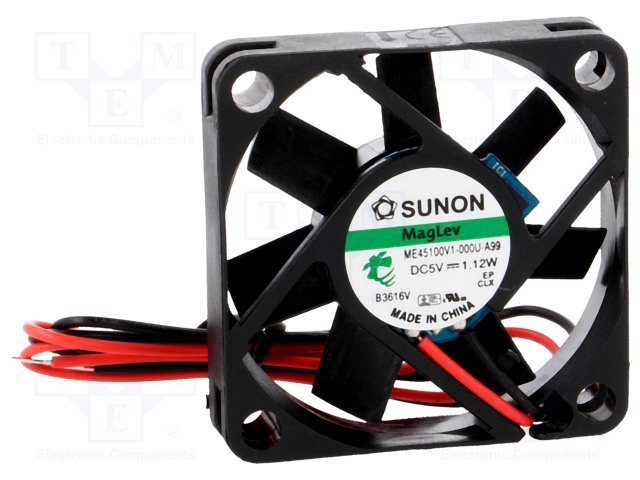

• Manufacturer SUNON
• Fan type DC
• Fan kind axial
• Supply voltage 5V DC
• Operating voltage 4...6V
• Fan dimensions 45x45x10mm
• Power consumption 1.12W
• Rated current 0.223A
• Fans efficiency 15.63m3/h
• Noise level 32dBA
• Bearing type Vapo
• Rotational rate/speed 6000 (±15%)rpm
• Weight 16g
• Current and power consumption tolerance ±15%
• Min. insulation resistance 10MΩ
• Fan material thermoplastic
• Enclosure material thermoplastic
• Insulation class A
• Operating temperature -10...70°C
• Leads 2 leads
• Static pressure 2.54mm H2O
• Cable length 300mm
• Fan motor brushless DC motor
• Flammability rating UL94V-0
• Wire size 26AWG
• Additional functions Autorestart

Parametri

45x45x10mm
5VDC
uz ass
MagLev
15.63m3/st
32dBA
6000apgr.
1.12W

Papildu dokumentācija
