Apraksts

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: Through Hole

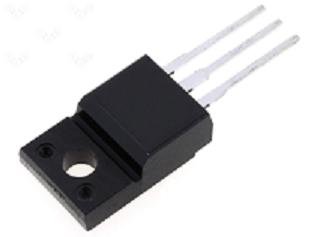

• Package/Case: TO-220-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 600 V
• Id - Continuous Drain Current: 4 A
• Rds On - Drain-Source Resistance: 2 Ohms
• Vgs - Gate-Source Voltage: - 30 V, + 30 V
• Vgs th - Gate-Source Threshold Voltage: 3 V
• Qg - Gate Charge: 26 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 70 W
• Channel Mode: Enhancement
• Tradename: SuperMESH
• Series: STP4NK60ZFP
• Packaging: Tube
• Brand: STMicroelectronics
• Configuration: Single
• Fall Time: 16.5 ns
• Height: 9.3 mm
• Length: 10.4 mm
• Product Type: MOSFET
• Rise Time: 9.5 ns
• 1000
• Subcategory: MOSFETs
• Transistor Type: 1 N-Channel
• Typical Turn-Off Delay Time: 29 ns
• Typical Turn-On Delay Time: 12 ns
• Width: 4.6 mm
• Unit Weight: 2 g

Parametri

600V
4A
70W
1R76
TO-220
