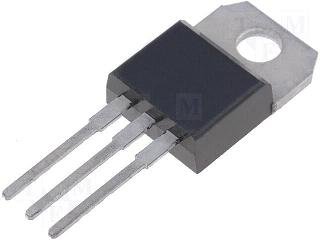

Apraksts

• Manufacturer: STMicroelectronics
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: Through Hole
• Package/Case: TO-220-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 60 V
• Id - Continuous Drain Current: 20 A
• Rds On - Drain-Source Resistance: 80 mOhms
• Vgs - Gate-Source Voltage: - 20 V, + 20 V
• Minimum Operating Temperature: - 65 C
• Maximum Operating Temperature: + 175 C
• Pd - Power Dissipation: 70 W
• Channel Mode: Enhancement
• Packaging: Tube
• Brand: STMicroelectronics
• Configuration: Single
• Fall Time: 25 ns
• Height: 9.15 mm
• Length: 10.4 mm
• Product Type: MOSFET
• Rise Time: 45 ns
• Series: STP20NE06
• 50
• Subcategory: MOSFETs
• Transistor Type: 1 N-Channel
• Typical Turn-On Delay Time: 20 ns
• Width: 4.6 mm
• Unit Weight: 2 g

Parametri

60V
20A
70W
0R06
TO-220
