Apraksts

• Manufacturer: Infineon
• Product Category: MOSFET
• RoHS: Details
• Technology: Si
• Mounting Style: Through Hole

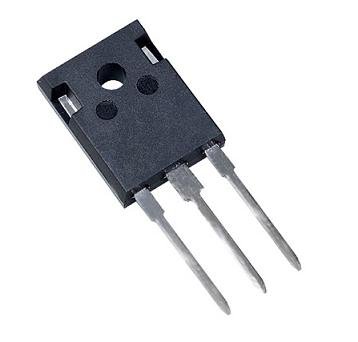

• Package/Case: TO-247-3
• Transistor Polarity: N-Channel
• Number of Channels: 1 Channel
• Vds - Drain-Source Breakdown Voltage: 900 V
• Id - Continuous Drain Current: 36 A
• Rds On - Drain-Source Resistance: 120 mOhms
• Vgs - Gate-Source Voltage: - 20 V, + 20 V
• Vgs th - Gate-Source Threshold Voltage: 2.5 V
• Qg - Gate Charge: 270 nC
• Minimum Operating Temperature: - 55 C
• Maximum Operating Temperature: + 150 C
• Pd - Power Dissipation: 417 W
• Channel Mode: Enhancement
• Tradename: CoolMOS
• Series: CoolMOS C3
• Packaging: Tube
• Brand: Infineon Technologies
• Configuration: Single
• Fall Time: 25 ns
• Height: 21.1 mm
• Length: 16.13 mm
• Product Type: MOSFET
• Rise Time: 20 ns

Parametri

900V
36A
417W
0R12
TO-247
