Apraksts

• Manufacturer ONPOW
• Type of switch vandal resistant
• Number of positions 2
• Contacts configuration  SPDT
• AC contacts rating @R  0.5A / 220V AC
• (at resistive load)
• DC contacts rating @R  1A / 24V DC
• (at resistive load)
• IP rating IP67
• Switching method  ON-ON
• (the position in bracket indicates momentary position.)
• Illumination LED 24V AC/DC,  ring
• Backlight colour blue
• Leads for soldering
• Operating temperature -20...55°C
• Electrical life 200000 cycles
• Max. contact resistance: 50mΩ
• Operating Force 4N
• Mechanical durability 1000000 cycles
• Button shape flat
• Mounting hole diameter Ø16mm
• Body colour silver
• Body material stainless steel
• Ring shape rounded
• Test voltage 5kV
• Contact material silver alloy
• Stable positions number 2

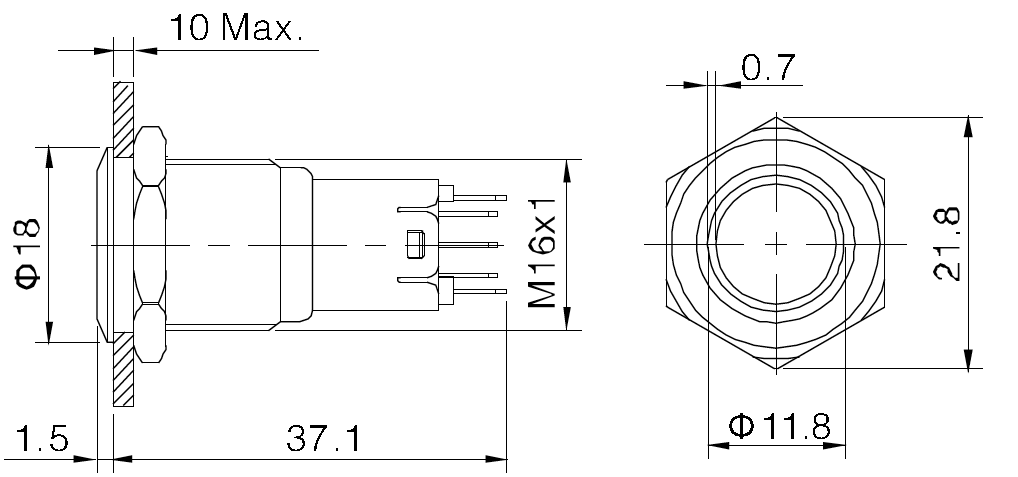

• Dimensions paskatīt
• Papildu informācijas
• Masa bruto: 13.25 g
• Oriģināls simbols: LAS2-GQF-11ZE/B24V/S-P

Parametri

SPST-NO
0.5A/220VAC
1A/24VDC
ON-ON
Poga
Ar fiksāciju
M16
LED24VDC
