Apraksts

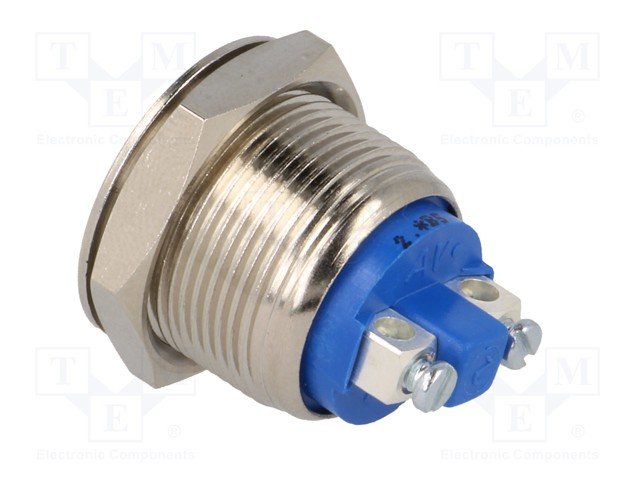

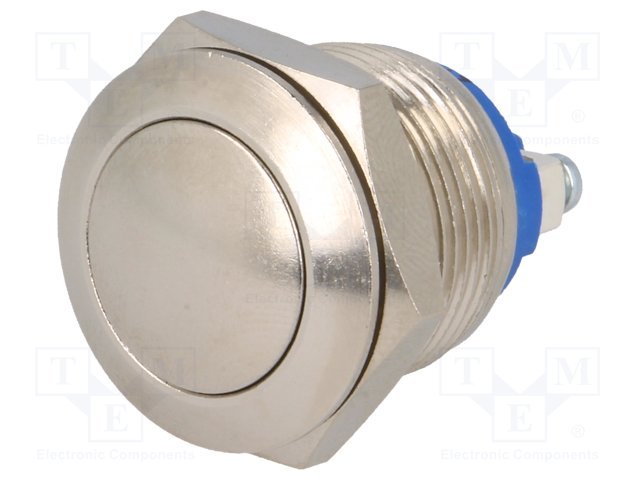

• Metal push button switches, high operational life and protection degree IP65. Smooth, rounded surface enables
• to keep switches clean.
• Typical applications: equipment control in generally accessible places (as lifts, hoists, control panels of machines, video games, etc.)
• Material : nickel plated brass
• Terminations : screw terminals Ø; 2.5
• Contacts : NO-SPST momentary, silver plated brass
• Contacts rating : 2A/48VDC (resistant load)
• Contact resistance : 10 mΩ; max
• Rezystancja izolacji : 1000 MΩ; min. at 500 V DC
• Dielectric strength : 2000 VRMS 50 Hz min. between contact and housing
• Temperature range : -20°C to + 55°C
• Protection degree : IP65
• Mechanical life : 1 000 000 operations
• Electrical life : 10 000 operations under full load
• Panel hole dia. : Ø; 19.2 mm
• Panel thickness : 1...11 mm
• Manufacturer : APEM

Parametri

SPST-NO
2A/48VDC
OFF-(ON)
Poga
Bez fiksācijas
M19
Bez apgaismojuma

Papildu dokumentācija
