Apraksts

• Manufacturer ONPOW
• Type of switch vandal resistant
• Number of positions 2
• Contacts configuration  SPDT
• AC contacts rating @R  0.5A / 220V AC
• DC contacts rating @R  1A / 24V DC
• IP rating IP67
• Switching method  ON-(ON)
• Illumination LED 12V AC/DC,  point
• Backlight colour green
• Leads for soldering
• Operating temperature -20...55°C
• Electrical life 50000 cycles
• Max. contact resistance: 50mΩ
• Operating Force 5N
• Mechanical durability 1000000 cycles
• Button shape flat
• Mounting hole diameter Ø19mm
• Body colour silver
• Body material stainless steel
• Ring shape rounded
• Test voltage 2kV
• Contact material silver alloy
• Stable positions number 1

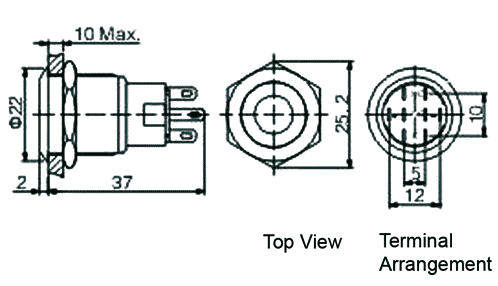

• Dimensions see
• Additional information
• Gross weight: 17.88 g
• Manufacturer part number: LAS1-AGQ-11D/G/12V

Parametri

SPDT-NO
0.5A/220VAC
1A/24VDC
ON-(ON)
Poga
Bez fiksācijas
M19
LED12VAC/DC
