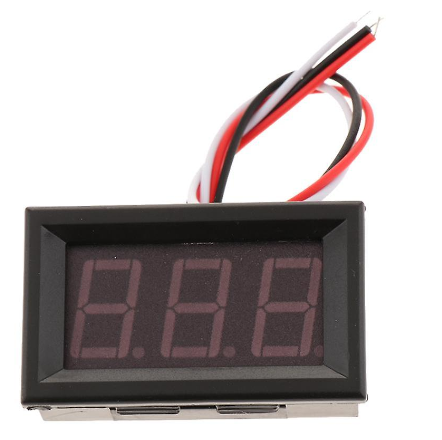

Modulis: Ciparu voltmetrs(sarkana), U=0...100VDC, 48x29x25mm, barošana DC4.5V-30V
Modulis: Ciparu voltmetrs(sarkana), U=0...100VDC, 48x29x25mm, barošana DC4.5V-30V
Modulis: Ciparu voltmetrs(sarkana), U=0...100VDC, 48x29x25mm, barošana DC4.5V-30V Modulis: Ciparu voltmetrs(sarkana), U=0...100VDC, 48x29x25mm, barošana DC4.5V-30V

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Modulis: Ciparu voltmetrs(sarkana), U=0...100VDC, 48x29x25mm, barošana DC4.5V-30V

Cena: 4.00 €
00028509
SI15033
44
  • Apraksts

    • Product Description
    • Input: DC voltage (<1.2 times the range) Range: DC 0 ~ 99.9V
    • Power supply: DC 4.5V-30V
    • Measurement accuracy: ±0.1%
    • Refresh rate: about 200ms/ times
    • Display: 0.56 inch digital tube
    • Display color: green
    • Operating current: <8mA
    • Operating temperature: -10°C to +65°C
    • Input impedance: approx. 100K
    • Connection: RED: supply +, Black: supply - and measuring - Yellow: measure +
    • Overall dimension: 4.7 * 2.8 * 2.6cm /1.85 inches X 1.1 inches X 1.0 inches
    • Package included:
    • 1 x 0.56 LED Digital DC Voltmeter
