Apraksts

• Features

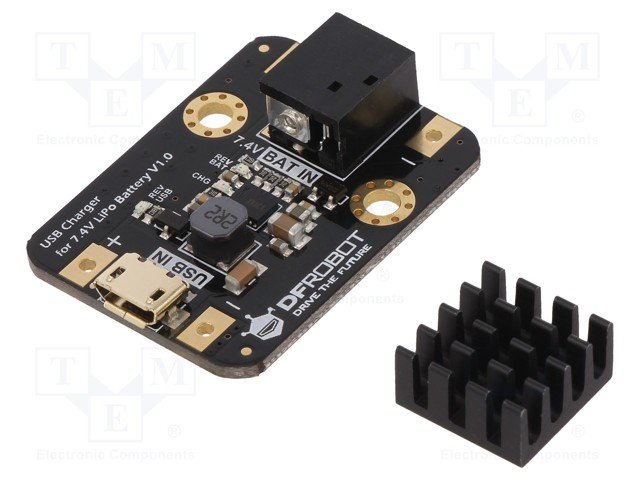

• High Efficieny Boost Type USB Charger, Designed for 7.4 Lithium Battery

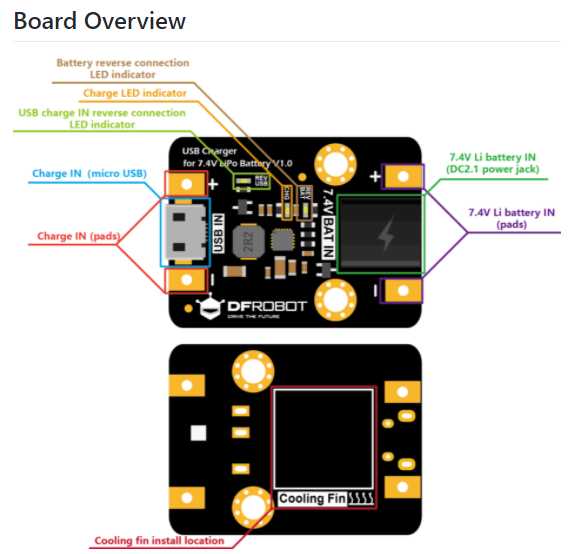

• Charge Input and Battery Port Reserved Pads for Easy Modification and Measurement
• All-Round Protection of Battery and Power Supply
• Multifunction LED Status Indicator, System Status at a Glance
• USB ESD Shell
• Specifications
• Charge Input Voltage (USB IN)：3-6V (5V, Typical for USB IN)
• Battery Input (BAT IN): 7.4V 2s Cells Li-Polymer/Li-ion Battery
• Maximum Charge Current: 1A Trickle Charging, Constant Current, Constant Voltage Three Phases Charging
• Charge Cutoff Voltage: 8.4V±1%
• Charge Efficiency: >90%
• Protections
• BAT IN: Over Charge/Reverse Connection Protection
• USB IN: Adaptive Input Current Limitation, Over Heat/Reverse Connection Protection
• Operation Temperature: -40℃～85℃
• Dimension: 28.0*37.0mm/ 1.1 * 1.46 inches
• Applications
• Robots and Motor Drivers
• Lithium Battery Charger
