Apraksts

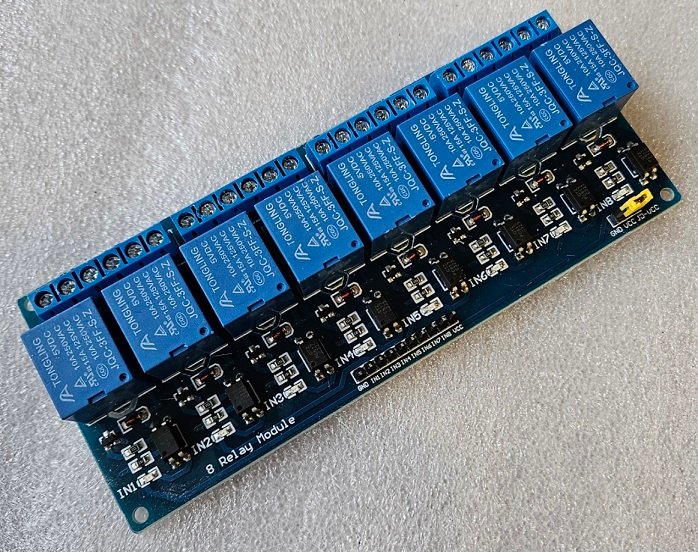

• 1, the module uses genuine quality relay, normally open interfaces Maximum load: AC 250V / 10A, DC 30V / 10A;
• 2, SMD optocoupler isolation, strong driving ability, stable performance; trigger current 5mA;
• 3, the module voltage 5V, to choose from;
• 4, each channel module can be set high or low triggered by jumper;
• 5, fault-tolerant design, even if the control line is broken, the relay will not operate;
• 6, power indicator , 8 relay state indicator
• 7, interface design user-friendly, all interfaces are available through the wiring terminal direct connection leads, very convenient
• 8, module size: 139mm * 57mm * 18.5mm (L * W * H)
• 9, has 4 mounting bolts holes, hole 3.1mm
