Apraksts

• • Input Voltage: 3.2V~40Vdc.

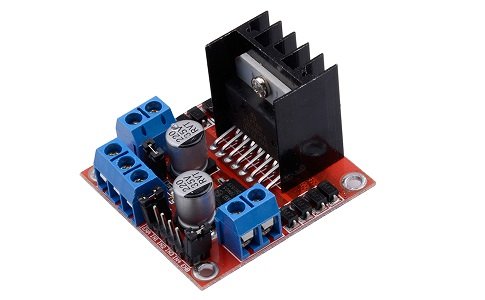

• • Driver: L298N Dual H Bridge DC Motor Driver
• • Power Supply: DC 5 V - 35 V
• • Peak current: 2 Amp
• • Operating current range: 0 ~ 36mA
• • Control signal input voltage range :
• • Low: -0.3V ≤ Vin ≤ 1.5V.
• • High: 2.3V ≤ Vin ≤ Vss.
• • Enable signal input voltage range :
• o Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid).
• o High: 2.3V ≤ Vin ≤ Vss (control signal active).
• • Maximum power consumption: 20W (when the temperature T = 75 ℃).
• • Storage temperature: -25 ℃ ~ +130 ℃.
• • On-board +5V regulated Output supply (supply to controller board i.e. Arduino).
• • Size: 3.4cm x 4.3cm x 2.7cm
