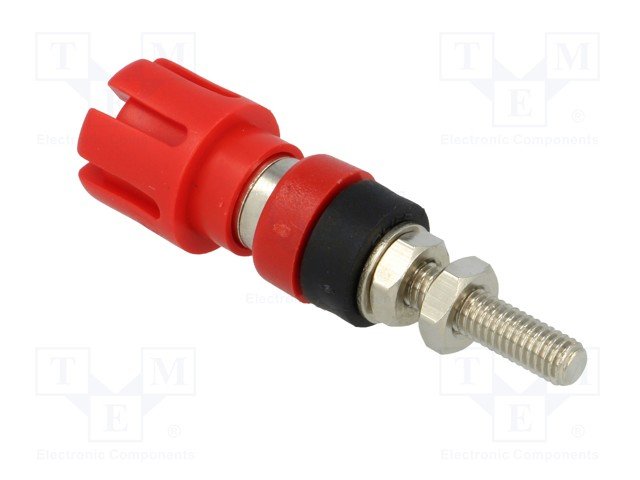

Apraksts

• Manufacturer CLIFF
• Connector socket
• Type of connector 4mm banana
• Current rating 30A
• Rated voltage  60V DC

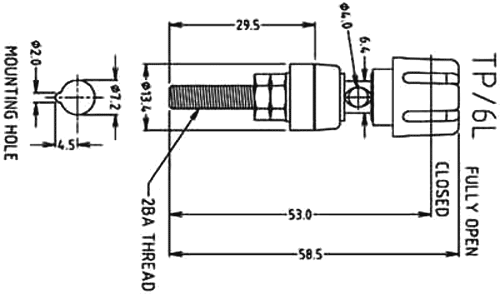

• Length 59mm
• Colour red
• Contact plating nickel plated
• Mounting on panel,  screw
• Connector variant with 4mm transversal socket
• Connection screw terminal
• Operating temperature -20...80°C
• Max. contact resistance: 30mΩ

Parametri

Sarkana krasa
Panelim
"Banans" Ø4mm
Ligzda

Papildu dokumentācija
