Apraksts

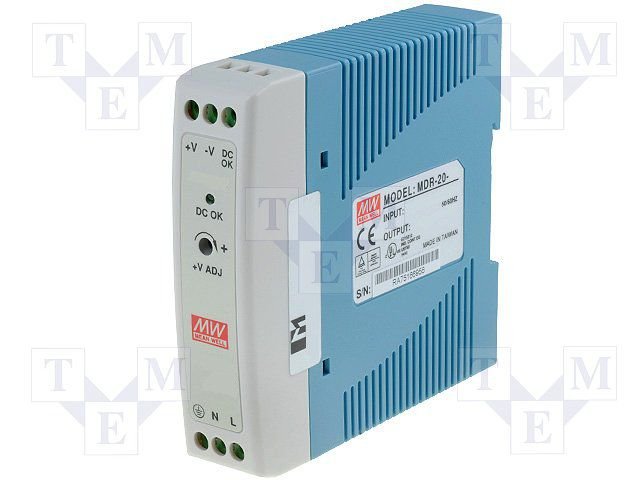

• Manufacturer MEAN WELL
• Pwr sup. unit type switched-mode
• Power 20W
• Output voltage 12V DC
• Output current 1.67A
• Supply voltage 85...264V AC, 120...370V DC
• Electrical connection terminal block
• Mounting DIN

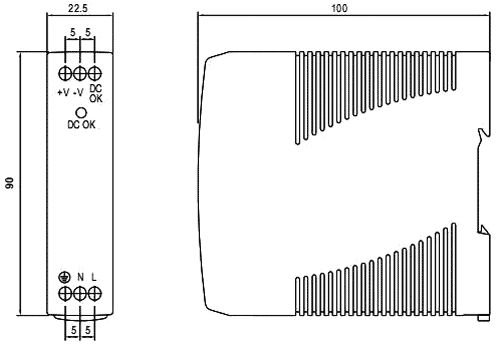

• Body dimensions 22.5 x 90 x 100mm
• Weight 190g
• Number of outputs 1
• Operating temperature -20...70°C
• Protection overload, overheating, overvoltage, short-circuit
• Additional functions output voltage correctness indication (NO contact)
• Power supply/converter features rated parameters obtained at full load

Parametri

Skrūvju spailes
DIN sliedei
12VDC
1.67A
20W

Papildu dokumentācija
