Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well
Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well
Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well
Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Barošanas avots, 12V, 5A, 60W, 85÷264VAC, DIN sliedei, Mean Well

Cena: 27.51 €
00024338

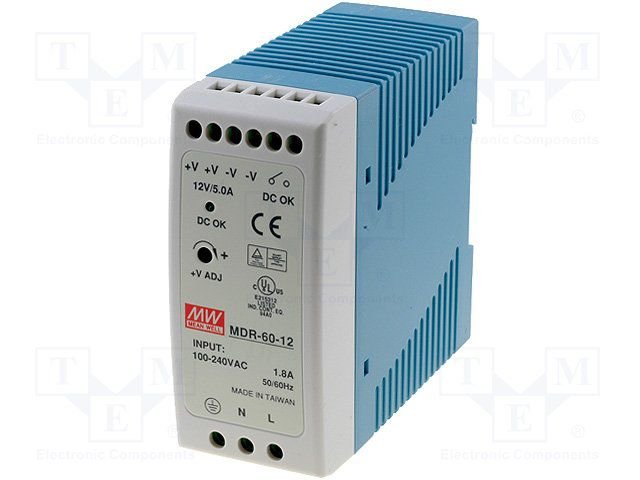

MDR-60-12
1

  • Apraksts

    • Manufacturer MEAN WELL
    • Pwr sup. unit type switched-mode
    • Power 60W
    • Output voltage 12V DC, 12...15V DC
    • Output current 5A
    • Supply voltage 85...264V AC, 120...370V DC
    • Electrical connection terminal block
    • Mounting DIN

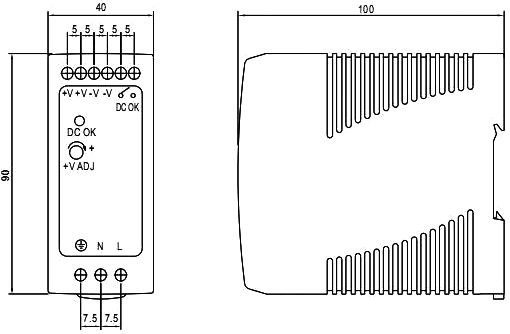

    • Body dimensions 40 x 90 x 100mm
    • Weight 330g
    • Number of outputs 1
    • Operating temperature -20...70°C
    • Protection overload, overheating, overvoltage, short-circuit
    • Efficiency 86%
    • Additional functions output voltage correctness indication (NO contact)
    • Power supply/converter features rated parameters obtained at full load
    • Series MDR-60

    Parametri

    Skrūvju spailes
    DIN sliedei
    12VDC
    5A
    60W

    Papildu dokumentācija
