Barošanas avots, 15V, 1.34A, 20W, 85÷264VAC, DIN sliedei, Mean Well
Barošanas avots, 15V, 1.34A, 20W, 85÷264VAC, DIN sliedei, Mean Well
Barošanas avots, 15V, 1.34A, 20W, 85÷264VAC, DIN sliedei, Mean Well Barošanas avots, 15V, 1.34A, 20W, 85÷264VAC, DIN sliedei, Mean Well

* Produktu fotogrāfijas ir tikai noskatīšanai un var dažreiz atšķirties no priekšmeta reāla izskata. Bet galvenās īpašības ir vienādas.

Barošanas avots, 15V, 1.34A, 20W, 85÷264VAC, DIN sliedei, Mean Well

Cena: 15.76 €
00017084
MDR-20-15
2
  • Apraksts

    • Manufacturer MEAN WELL
    • Pwr sup. unit type switched-mode
    • Power 20W
    • Output voltage 15V DC
    • Output current 1.34A
    • Supply voltage 85...264V AC, 120...370V DC
    • Electrical connection terminal block
    • Mounting DIN

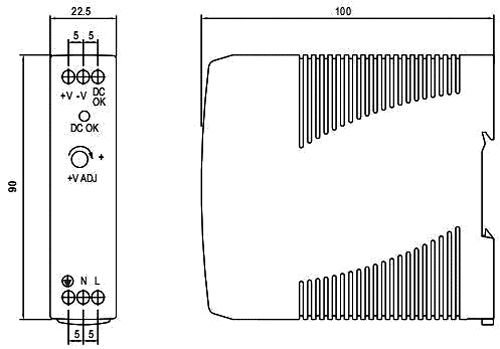

    • Body dimensions 22.5 x 90 x 100mm
    • Weight 190g
    • Number of outputs 1
    • Operating temperature -20...70°C
    • Protection overload, overheating, overvoltage, short-circuit
    • Efficiency 81%
    • Additional functions output voltage correctness indication (NO contact)
    • Power supply/converter features rated parameters obtained at full load
