Apraksts

• Manufacturer MEAN WELL
• Pwr sup. unit type switched-mode
• Power 40W
• Output voltage 24V DC
• Output current 1.7A
• Supply voltage 85...264V AC, 120...370V DC
• Electrical connection terminal block
• Mounting DIN

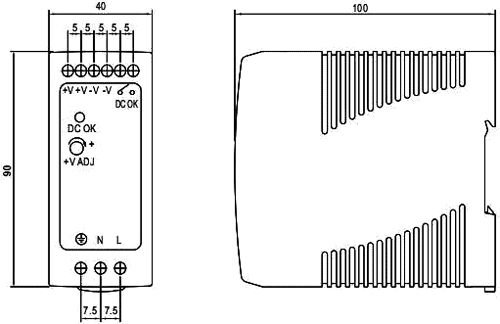

• Body dimensions 40 x 90 x 100mm
• Weight 300g
• Number of outputs 2
• Operating temperature -20...70°C
• Protection overload, overheating, overvoltage, short-circuit
• Additional functions output voltage correctness indication (NO contact)
• Power supply/converter features rated parameters obtained at full load

Parametri

Skrūvju spailes
DIN sliedei
24VDC
THT
40W
