Apraksts

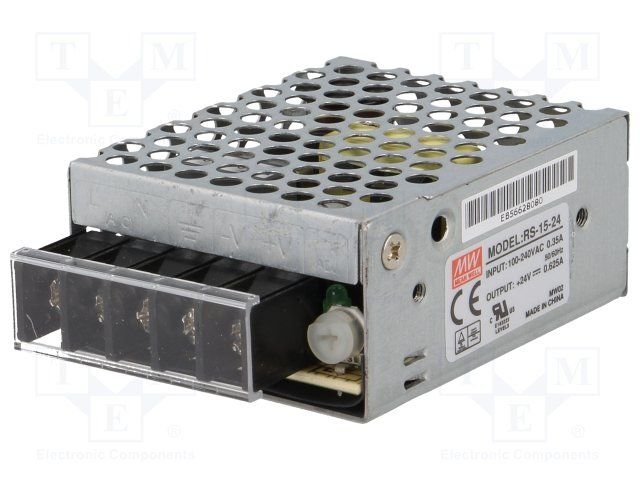

• Manufacturer MEAN WELL
• Type of power supply unit switched-mode
• Kind of power supply modular
• Power 15W
• Output voltage 24V DC

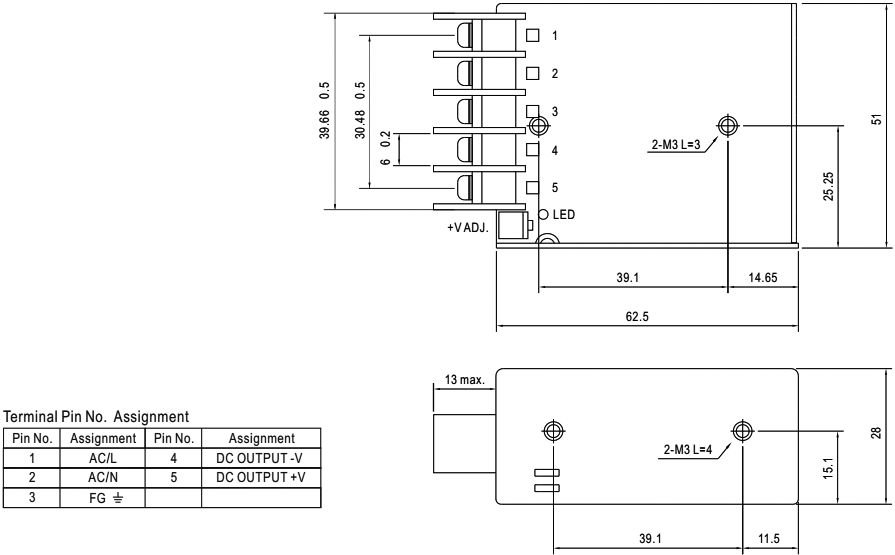

• Body dimensions 62.5 x 51 x 28mm
• Output current 0.625A
• Power supply/converter features rated parameters obtained at full load
• Weight 130g
• Number of outputs 1
• Mounting for building in
• Operating temperature -25...70°C
• Electrical connection terminal block
• Supply voltage 88...264V AC, 120...370V DC
• Protection overload, voltage growth, short-circuit
• Efficiency 82%
• Series RS-15
• Kind of case 971A

Parametri

Skrūvju spailes
Modulis
24VDC
0.625A
15W
