Apraksts

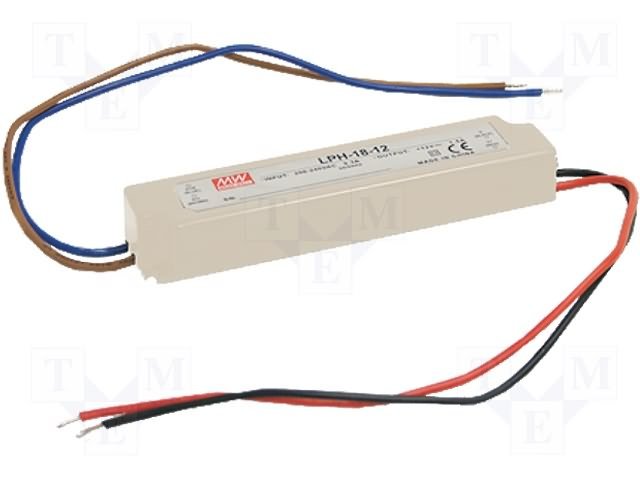

• Manufacturer MEAN WELL
• Pwr sup. unit type pulse
• Application for LED diodes
• Power 18W
• Output voltage 12V DC
• Output current 1.5A
• Supply voltage 180...264V AC, 254...370V DC
• Sealing IP67

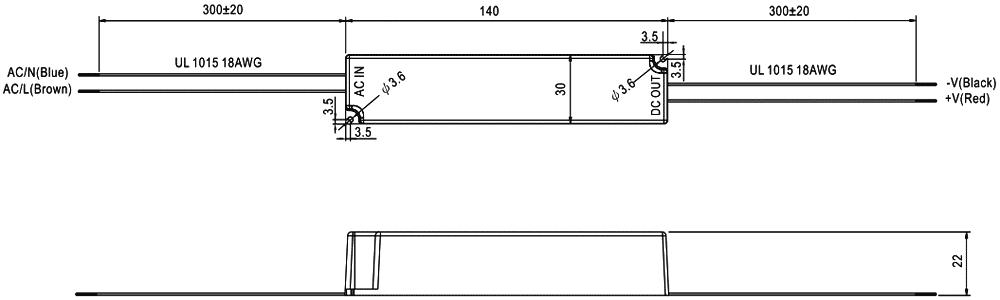

• Body dimensions 140 x 30 x 22mm
• Power supply/converter features rated parameters obtained at full load
• Protection overload, overheating, voltage growth, short-circuit
• Weight 175g
• Operating temperature -30...70°C
• Electrical connection 300mm wires
• Number of outputs 1

Parametri

Vadi
Kontaktdakšas
12VDC
1.5A
20W

Papildu dokumentācija
