Apraksts

• Manufacturer ESPE
• Type of power supply switched-mode
• Application LED
• Kind of power supply voltage source
• Power 60W
• Output voltage 12V DC
• Output current 5A
• Supply voltage 220...240V AC
• IP rating IP67

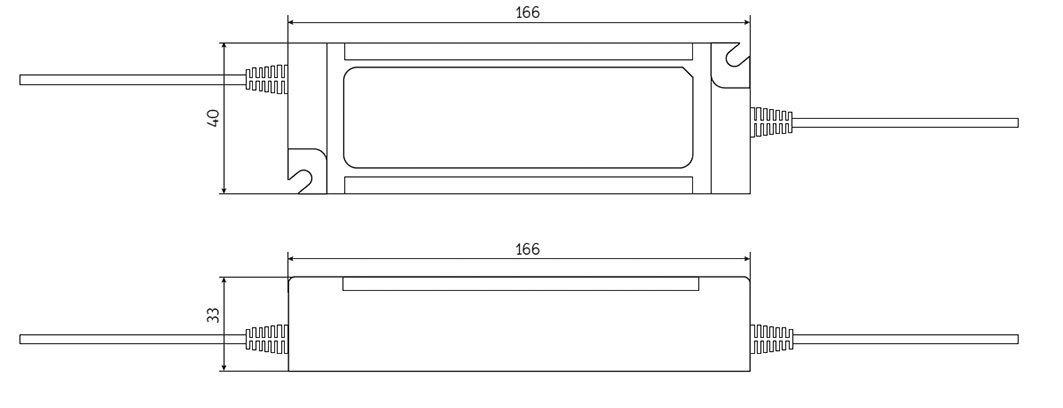

• Body dimensions 166x40x33mm
• Protection overheating,  overload,  short-circuit,  voltage growth
• Operating temperature -10...40°C
• Electrical connection 200mm wires
• Number of outputs 1
• Additional functions active PFC
• Efficiency 85%
• Dimensions see
• Power supply/converter features
• no load power consumption <0,5W
• rated parameters obtained at full load
• Additional information
• Gross weight: 414.8 g
• Manufacturer part number: LPE6012CV

Parametri

Vadi
Kontaktdakšas
12VDC
5A
60W

Papildu dokumentācija
